POLLY AUTOMATIC

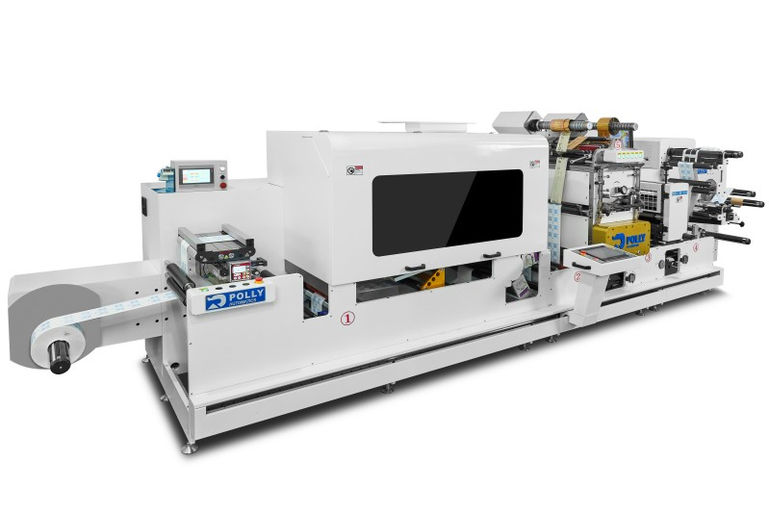

M370/420 Inclined Screen hot foil rotary die cutting
Working Path
Unwind--web guide--Inclined Silk Screen print--Flat bed hot stamping--Semi/full rotary die-cutting--image inspection--Razor and crush slitting-Snowball waste removal--turret rewind
Features
I: High Speed inclined silk screen unit
-Servo motor driven main unit
-Automatic registration
-Eye mark sensor
-Chilling roller
-UV dryer*2PCS UV lamp

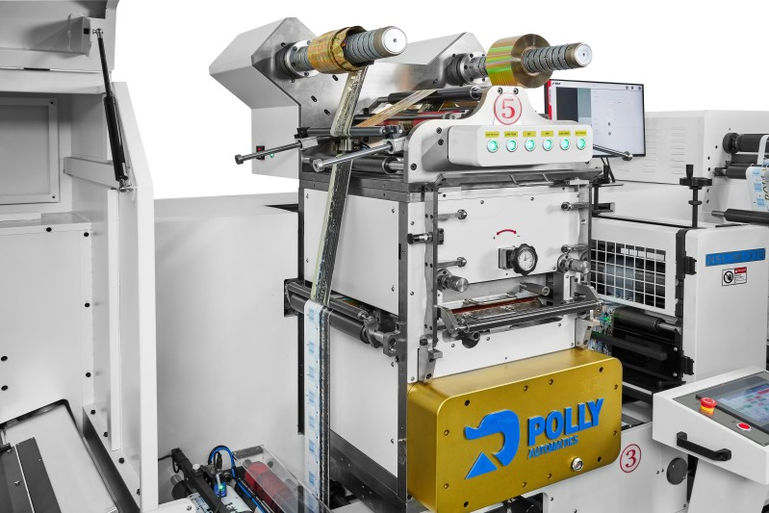

II. High Speed hot stamping Unit
-Servo motor driven main unit
-Servo motor driven dancer
-Foil saver system
-Eye mark sensor
-90 degree rotary shafts
-2 differential shafts
III.Semi/Full Die Cutting Unit
-Servo drove tension control,
-One key interchange between semi & full die cutting mode.
IV. Automatic registration system
-Accurate, fast, and easy operation,
the registered waste is controlled within 1~2meter.
V.Razor and crush slitting
VI.Semi-automatic turret rewinder
VII. Additional:
-Moveable Touch Screen operation interface.
-Deviation rectification control
-Imagine Inspection
-Snowball waste system

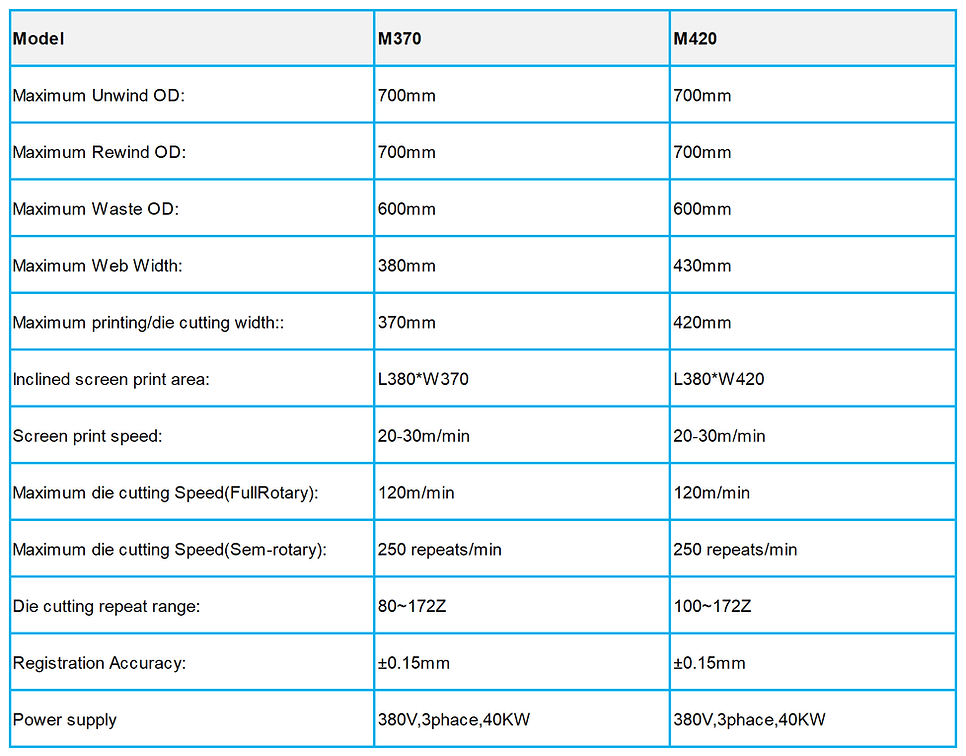

Specifications
